R2000 Control Panel Retrofit Upgradem
The R2000 control panel is a highly configurable control
system focusing on energy efficiency, enhanced user
accessibility, and an easy to use, feature rich design!
With a broad range of standard and optional features,
including increased analog and digital I/O Points, the control panel can meet the retrofit needs of the Polaris
and PAP compressor products, while allowing users to
ensure that their system is operating at peak efficiency.
The R2000 has been designed to easily replace or upgrade
existing FS-Elliott legacy control panels. Offering the latest
technology while including FS-Elliott’s Energy Advisor and
Maintenance Notification System as standard features, the
R2000 can also help ensure that your compressor is
operating at its best without unnecessary downtime.
Description
Standard Features

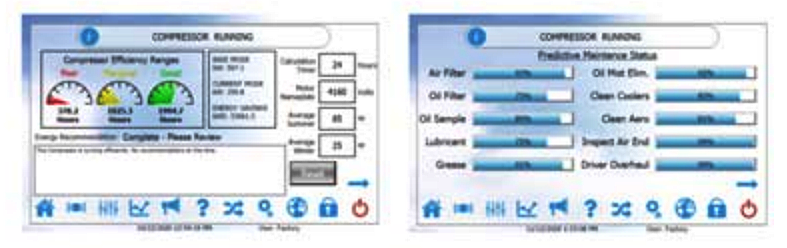

R2000 Home Screen
Standard Features included:
• NEMA 4/IP66 Enclosure
• Siemens or Allen-Bradley PLC
• Color Touchscreen HMI 7”
• FS-Elliott’s Energy Advisor
• FS-Elliott’s Maintenance Notification System
• Simplex 24 VDC Power Supplies
• Simplex Modbus TCP/IP Communications
• Emergency Stop Button (Push/Pull)
• USB Port Access on Front of Panel
• Pneumatic Valve Control
• Alarm & Trip Lights
• Compressor and Auxiliary Oil Pump Running Light
• 12 Analog Inputs, 2 Analog Outputs
• 14 Digital Inputs, 10 Digital Outputs
• Vibration Transmitters x2
• Base & Suction Throttle Mode
• Manual or Auto Start/Stop Control
• Pressure Band Optimization (PBO)
• Historical Data Logging
Optional Features
Optional Features include:
• NEMA 4X Stainless Steel Enclosure
• Panel Purge System with Z-Purge
• Siemens S7-1200 or Siemens S7-1500 PLC
Hardware
• Allen Bradley Compact or Control Logixs PLC
Hardware
• Color Touchscreen HMI, 9”, 12” or 15”
• Remote Touchscreen HMI
• Serial Modbus Communications
• Redundant 24 VDC Power Supplies
• Redundant Modbus Communications
• Remote Mounted Panel
• Panel Cooling and/or Heating Packages
• Hart Capable Transmitters
• Hart Multiplexer
• Density Control for Motor Driven Compressors
• Turbine Control
• Up to 48 Analog Signals
• Up to 8 Panel Mounted Vibrations Transmitters
• Up to 16 additional Digital Inputs & Digital Outputs
• Electric Valve Control
• Momentary Start/Stop
• IoT Platform for Remote Monitoring & Notifications
• Integrated Compressor Control (ICC)
• Ambient Compensation Control (ACC)
• Built-in Anti Surge Control
• Single Point Electrical Feed (Low Voltage Panel)
-Auxiliary Oil Pump Starter
-Lube Oil Heater Contractor
-Control Power Transformer
