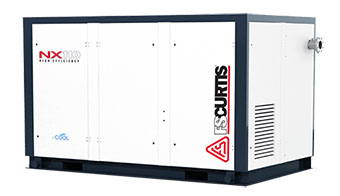

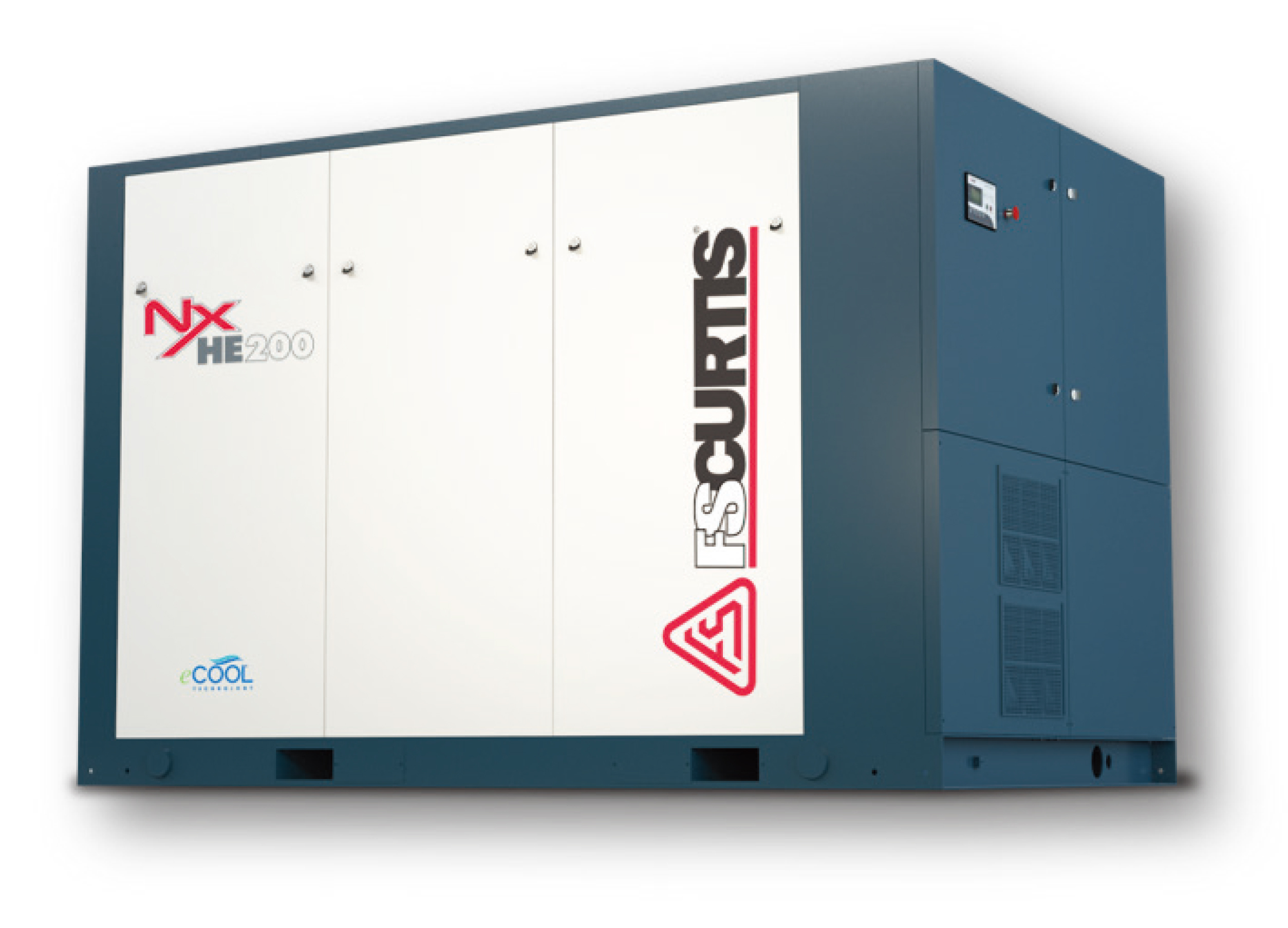

NxHE Series Direct Drive Fixed & Variable Speed

Working Pressure : 7.0 – 12.0 Bar g (100 – 175 PSI)
Air Delivery : 14.6 – 54.3 m3/min (516 – 1,917 CFM)
Motor Power : 90 – 250 KW (120 – 335 HP)

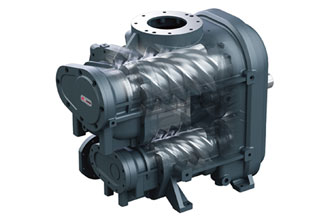

Direct-acting dual-stage air compressor technology sets new energy efficiency standards for the industry

Compared with single-stage compressors, two-stage air compressors are closer to the principle of isothermal compression. With the innovative oil injection between the stages, the inlet temperature to the second stage is reduced. This lower inlet temperature helps to increase the efficiency of air compression by reducing the compression ratio between the stages and also greatly reducing the leakage between the rotor seals, thus greatly improving the efficiency of air volume.

Two-stage industrial air pumps are similar to the Isothermal compression principle.

• Effectively reduce losses and increase volume

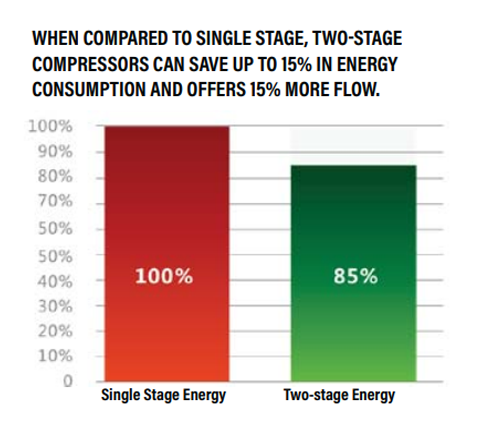

• Can save energy up to 10-15% more than single-stage compressors.
• Increases flow volume 10-15% better than single stage compressors.
• Reduce the pressure difference to a minimum for reliable efficiency.
• Low temperature during load
• Easy to maintain
• Lowest life cycle cost in the global compressor market
