Working Pressure : 7.5 – 10.0 Bar g (101 – 145 PSI)
Air Delivery : 10.1 – 48.6 m3/min (357 – 1,716 CFM)
Motor Power : 75 – 275 KW (100 – 368 HP)
The EX Series oil-free screw compressor series works on a dry compression principle and no lubricating oils are required throughout the entire compression process. The series is ISO8573.1 Class 0 certified and supplies 100% oil-free compressed air. It is designed with a sophisticated processing rotor, gear drive, and a reliable seal combination to provide high-quality compressed air. It has a long lifespan and a wide scope of applications. The unit is CAD integrated, designed,and made; it employs advanced patented VDT dew point control to monitor the temperature and humidity of the compressed air and to enhance compression efficiency
The EX Series oil-free screw air compressors, available in 75-120 kW and 132-275 kW models, are available in both air-cooled and water-cooled models, delivering industry-leading energy efficiency and the reliability and durability that are the hallmarks of FS-Curtis, an American brand.
EX Series Dry Screw Direct Drive Fixed & Variable Speed

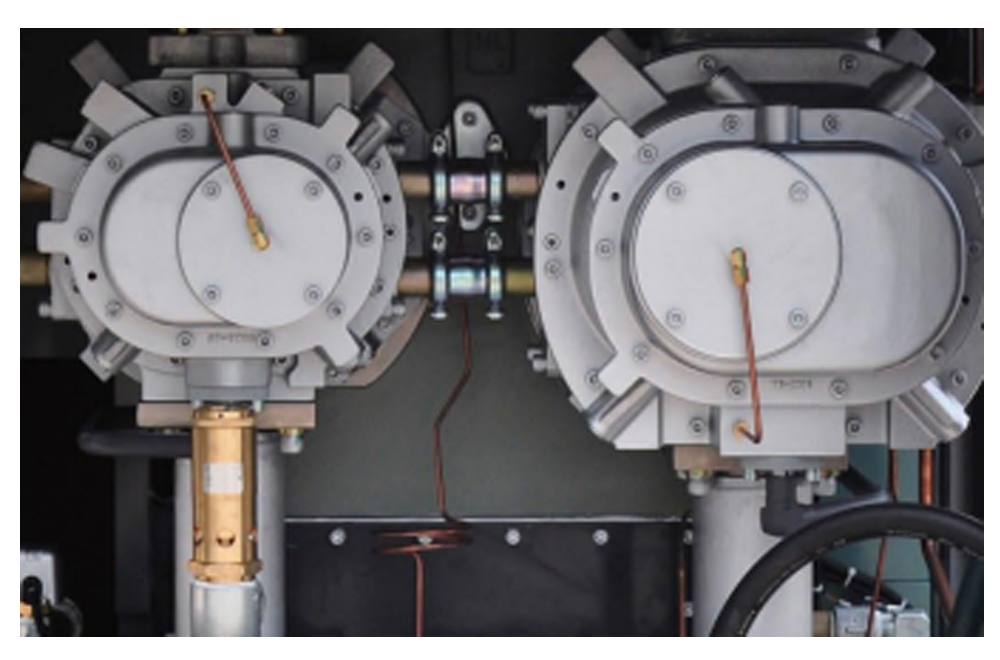

Air-end
– We use ultra-thin coating of international patented technology, which shows amazing adhesion and durability under
the relevant test, and the light weight of the coating itself prevents the possibility of shedding.
Atmospheric vent hole’s structure
– Exclusive patented “2 atmospheric vent holes structure” prevents lubricating oil from entering the compressed air
chamber through the shaft seals, even if unloading for a long time, the compression chamber is maintained 100% oil free.

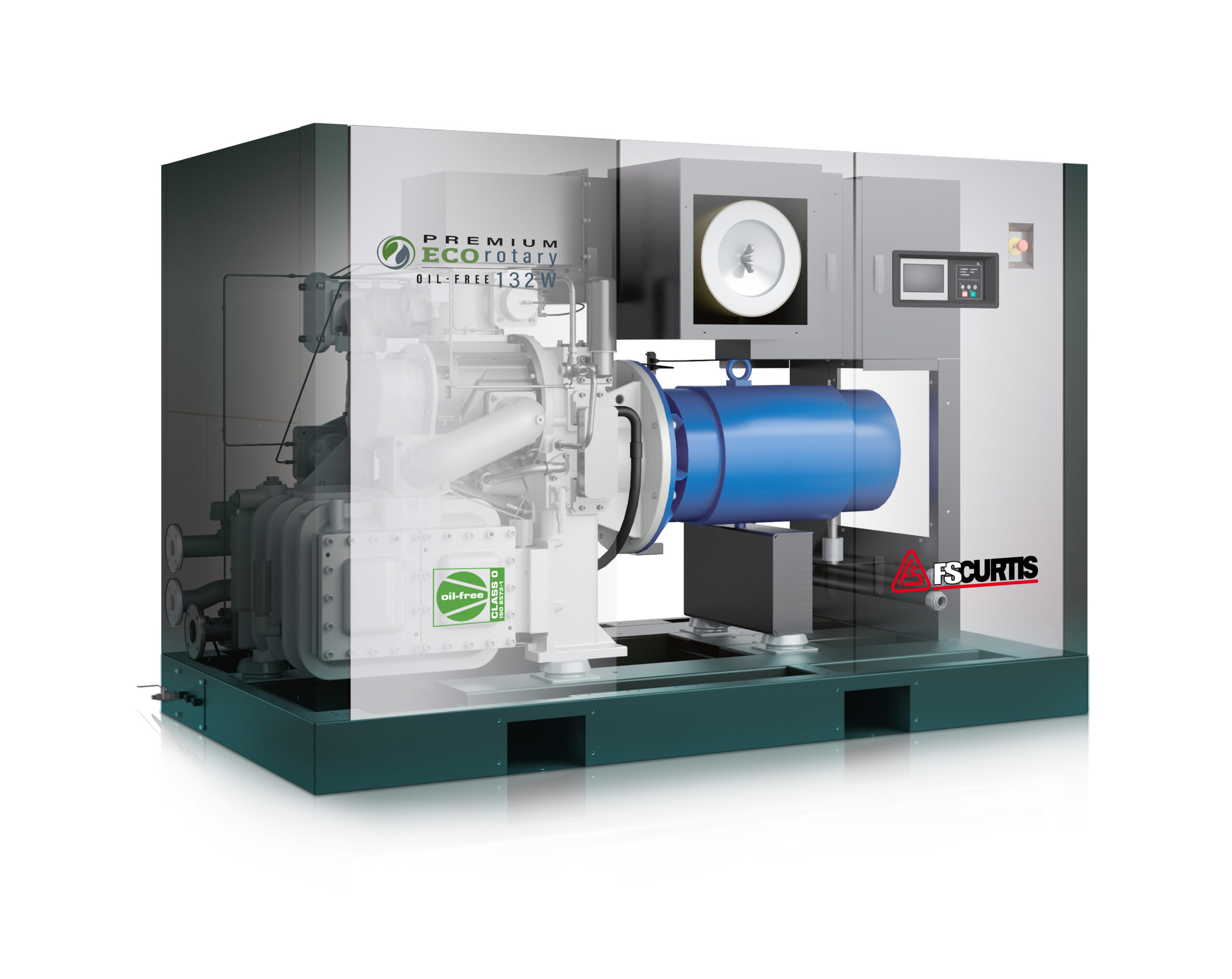

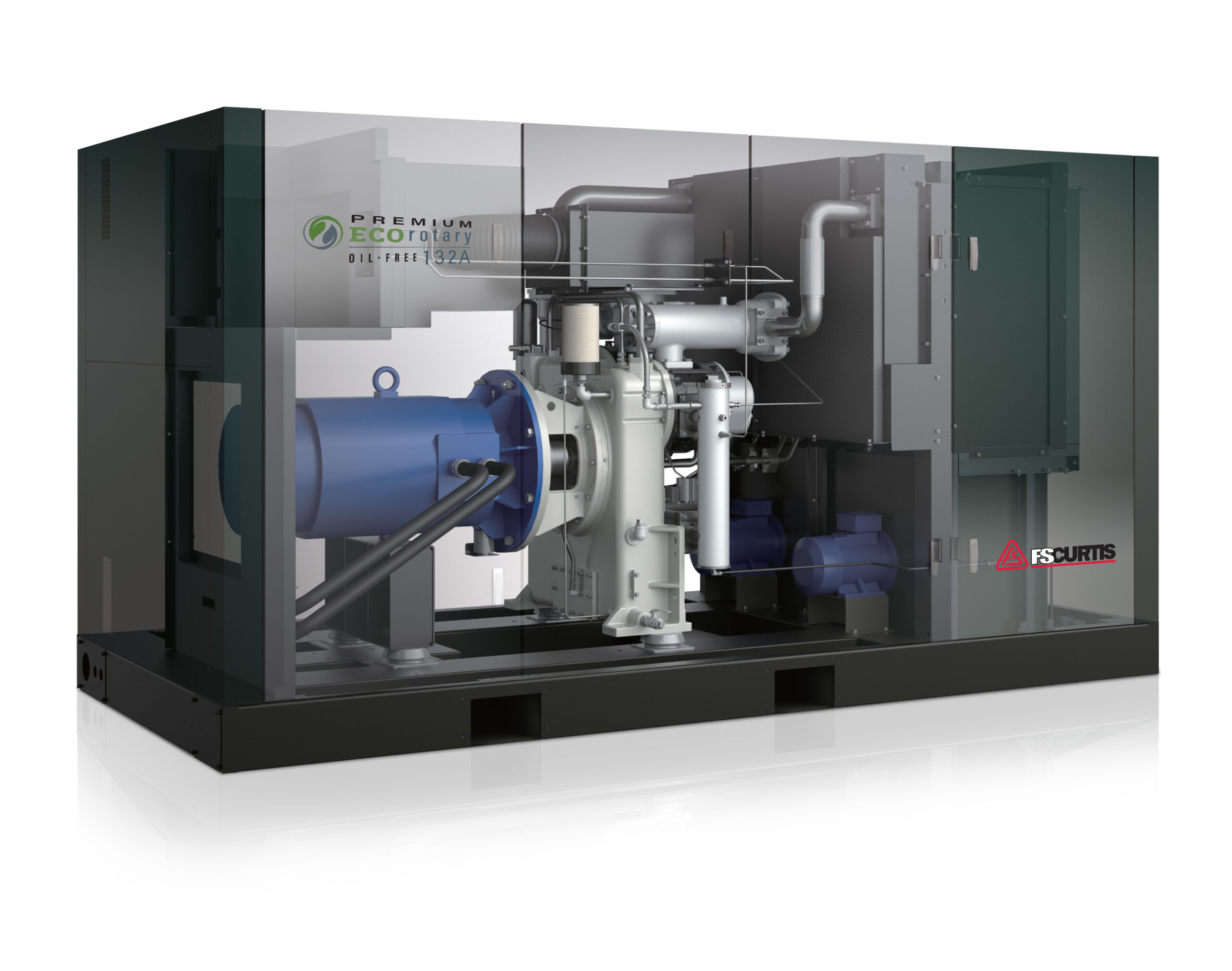

Air-end & Motor connection
– The Airend and motor of the compressor are driven by gears. No coupling design to reduce mechanical loss.
Increased cooling area
– The increased cooling area not only provides high heat exchange efficiency, but also provides sufficient allowance
for the compressed air to pass through the cooler at once. The extremely low pressure drop results in higher
compression efficiency.
